A coil winding machine has been designed for wet-winding copper
wire coils with curved geometries for advanced multi-coil setups. This machine
allows automated coil winding and resin impregnation with detailed quality
control of the coil elements.

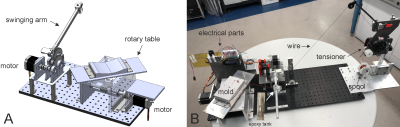

Figure 3:
Coil winding machine. A) CAD model of the
developed coil winding system. B) Working implementation of this design.

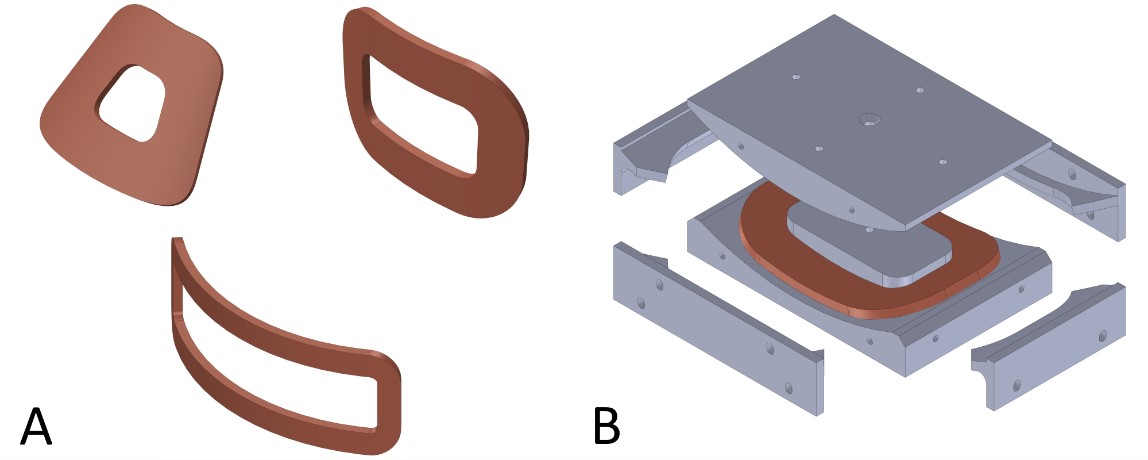

Figure 2: Selection of curved and tampered
coil elements used in the multi-coil array. A) CAD models of the three
basic coil shapes to be produced (cf. Fig. 1).
B) Example CAD model of the aluminum mold used to wind and cure a curved
100-turn coil element.
